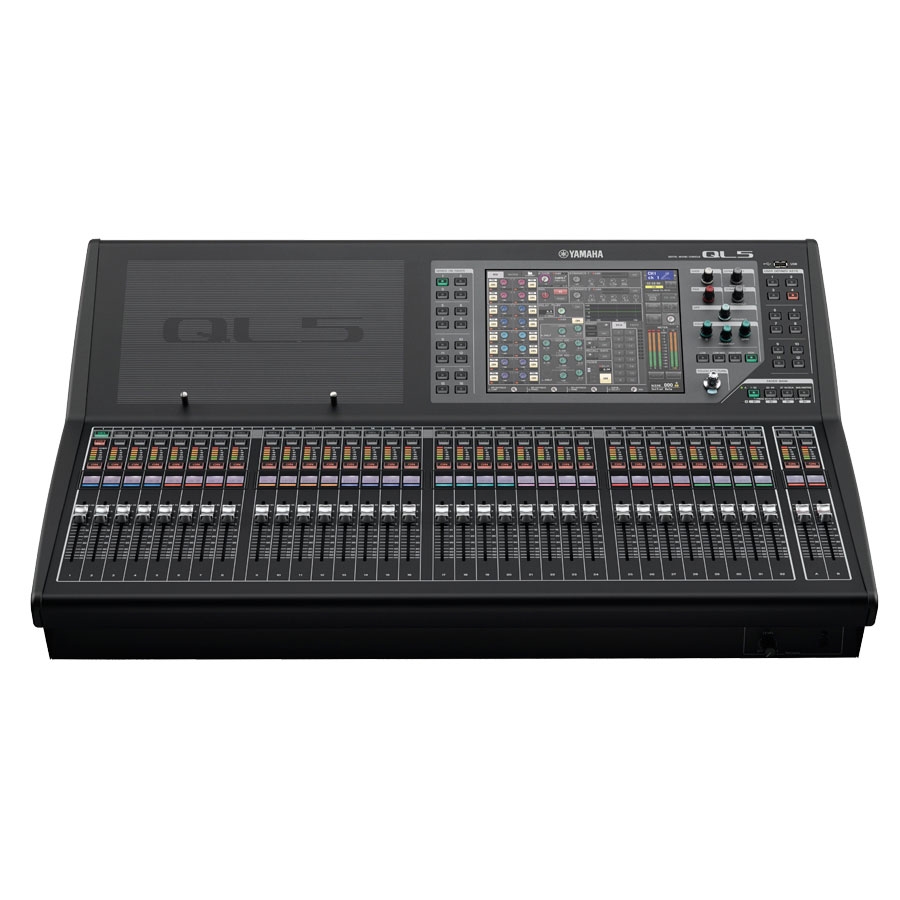

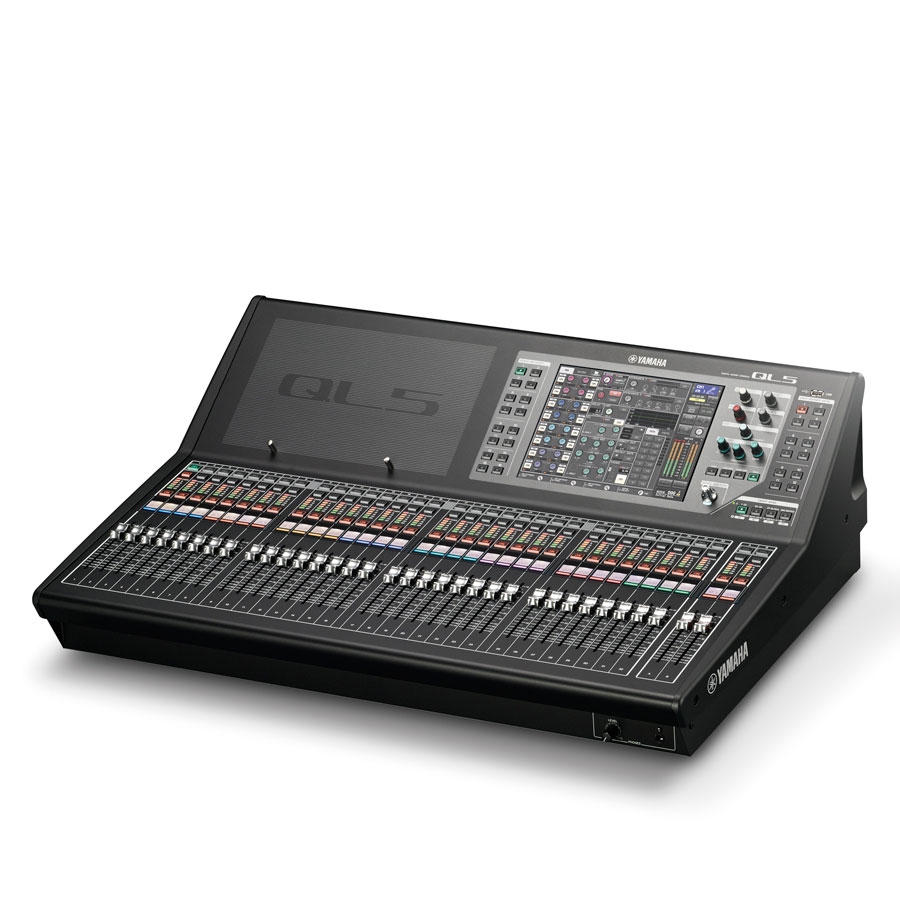

Mixer Yamaha QL5
Đánh giá 1 lượt đánh giá
Hotline: 0915508880
Nhập mã NV300 để được giảm thêm 300.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 3.000.000đ
Nhập mã NV500 để được giảm thêm 500.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 10.000.000đ.
Nhập mã NV1000 để được giảm thêm 1.000.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 15.000.000đ.
Đặt hàng Online (8:00 - 21:00): 091 550 8880 - 0995 666 555
THÔNG TIN CHI TIẾT Mixer Yamaha QL5
| Tỷ lệ tần suất lấy mẫu | Bên trong | 44.1kHz / 48kHz |
|---|---|---|
| Bên ngoài | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | |
| Độ trễ tín hiệu | Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz | |
| Fader | 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders | |
|---|---|---|
| Tổng độ méo sóng hài | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min. | |
|---|---|---|
| Đáp tuyến tần số | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT | |
| Dãy động | 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min. | |
| Mức nhiễu & Ồn | Nhiễu đầu vào tương đương | -128dBu typ., Equivalent Input Noise, Input Gain=Max |
| Nhiễu đầu ra thặng dư | -88dBu, Residual output noise, ST master off | |
| Xuyên âm | -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min. | |
| Yêu cầu về nguồn điện | 100-240V 50/60Hz | |
| Tiêu thụ Điện | 200W | |
| Kích thước | Rộng | 828mm(32.6in) |
| H | 272mm(10.7in) | |
| Sâu | 563mm(22.2in) | |
| Trọng lượng tịnh | 21.8kg(48.1lb) | |
| Phụ kiện | Owner’s Manual, dust cover, power cord, DVS license sheet | |
| Options | Mini-YGDAI cards *2 , Gooseneck Lamp LA1L, Nuendo Live | |
|---|---|---|
| Khác | Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | |
|---|---|---|
Crosstalk@1kHz : A 22kHz, 30dB/Oct filter is used to measure crosstalk.
Total Harmonic Distortion : An 80kHz, 18dB/Oct filter is used to measure total harmonic distortion.
Hum & Noise : An A-Weight filter is used to measure hum &noise.
| Input Connectors | GAIN | Input Impedance | Source Impedance | Input level | Connector | ||
|---|---|---|---|---|---|---|---|
| Sensitivity*¹ | Nominal | Max. before clip | |||||
| INPUT 1-32 *6 |
+66dB | 7.5 kΩ | 50-600 Ω Mics & 600 ΩLines |
–82dBu (61.6μV) |
–62dBu (0.616mV) |
–42dBu (6.16mV) |
XLR-3-31 type (Balanced) *2 |
| –6dB | –10dBu (245mV) |
+10dBu (2.45V) |
+30dBu (24.5V) |
||||
*1. The sensitivity is the input level required for output at +4dBu (1.23V) or at the defined level when all the faders and level
controllers are set to the maximum value.
*2. XLR-3-31 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
*3. 0dBu=0.775 Vms for all specifications.
*4. All the AD converters use 24-bit linear/128-times oversampling.
*5. The INPUT connectors have +48V DC (phantom power) jacks, each of which can be turned on/off individually from the console software.
*6. QL1: INPUT1-16
| Output Connectors | Output Impedance | Load Impedance | Maximum Output Level *5 | Output Level | Connector | |
|---|---|---|---|---|---|---|
| Defined Level | Maximum Non-Clip Level | |||||
| OMNI OUT 1-16 *7 |
75 Ω | 600 Ω Lines |
+24dB (default) |
+4dBu (1.23V) |
vt+24dBu (12.3V) |
XLR-3-32 type (Balanced) *1 |
| +18dB | –2dBu (616mV) |
+18dBu (6.16V) |
||||
| PHONES | 15 Ω | 8 Ω Phones |
- | 75mW *6 | 150mW | Stereo Phone Jack(TRS) (Unbalanced) *2 |
| 40 Ω Phones |
- | 65mW *6 | 150mW | |||
*1. XLR-3-32 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
*2. The PHONES connectors for stereo headphones are balanced jacks (Tip=LEFT, Ring=RIGHT, Sleeve= GND).
*3. 0 dBu=0.775 Vms for all specifications.
*4. All the DA converters use 24-bit linear/128-times oversampling.
*5. The console has an internal switch for toggling the maximum output level.
*6. This is a value measured with the PHONES LEVEL knob set to 10 dB below the maximum position.
*7. QL1: OMNI OUT 1-8
| Connectors | Format | Data length | Level | Audio | Connector |
|---|---|---|---|---|---|
| Primary/Secondary | Dante | 24bit or 32bit | 1000Base-T | 64ch Input/64ch Output@48kHz *1 |
EtherCON Cat5e |
*1. QL1: 32ch Input/32ch Output@48kHz
| Connectors | Format | Data length | Level | Connector | |
|---|---|---|---|---|---|
| DIGITAL OUT | AES/EBU | AES/EBU Professional Use | 24bit | RS422 | XLR-3-32 type (Balanced) *1 |
*1. XLR-3-32 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
Each I/O Slot accepts a Mini-YGDAI card.
Only Slot 1 has a serial interfac
| Connectors | Format | Level | Connector | |
|---|---|---|---|---|
| MIDI | IN | MIDI | - | DIN Connector 5P |
| OUT | MIDI | - | DIN Connector 5P | |
| WORDCLOCK | IN | - | TTL/75 Ω terminated | BNC Connector |
| OUT | - | TTL/75 Ω | BNC Connector | |
| GPI (5IN/5OUT) | - | - | D Sub Connector 15P(Female) *1 | |
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 | |
| LAMP (QL5: x 2, QL1: x 1) | - | 0V-12V | XLR-4-31 type *2 | |
| USB HOST | USB 2.0 | - | USB A Connector (Female) | |
*1. Input pin: TTL level, w/ internal pull-up (47kΩ) Output pin: Open drain output (Vmax=12V, maximum sink current/pin=-75mA) Power supply pin: Output voltage Vp=5V, Max. output current=300mA
*2. 4 pin=+12V, 3 pin=GND, Lamp nominal power: 5W, Brightness (voltage) can be adjusted from the software.
