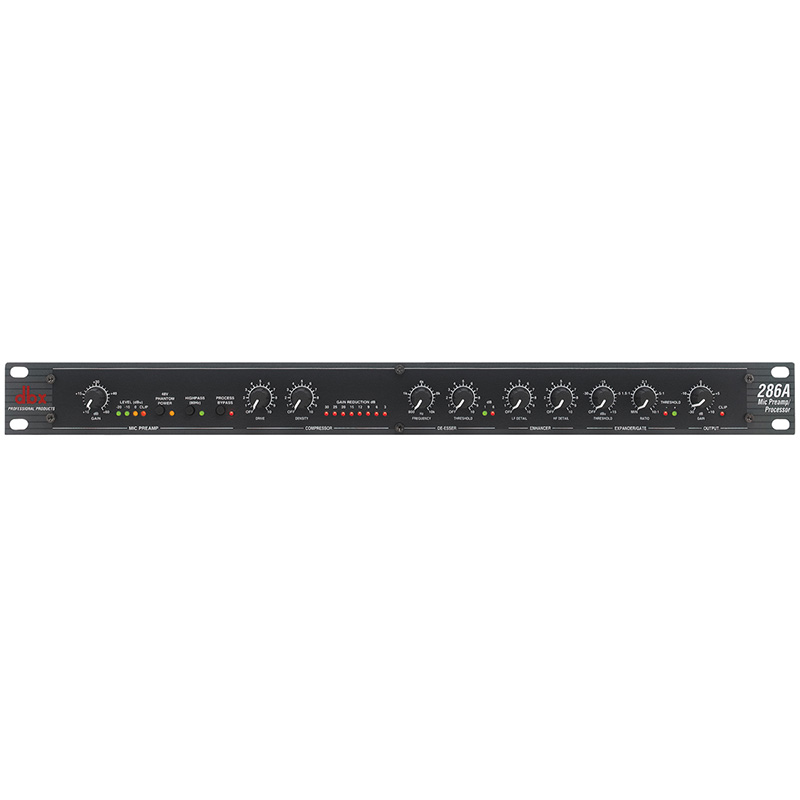

DBX 286A - MICROPHONE PRE-AMP PROCESSOR
Đánh giá 1 lượt đánh giá
Hotline: 0915508880
Nhập mã NV300 để được giảm thêm 300.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 3.000.000đ
Nhập mã NV500 để được giảm thêm 500.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 10.000.000đ.
Nhập mã NV1000 để được giảm thêm 1.000.000 khi đặt mua hàng Online. Áp dụng đối với đơn hàng giá trị từ 15.000.000đ.
Đặt hàng Online (8:00 - 21:00): 091 550 8880 - 0995 666 555
THÔNG TIN CHI TIẾT DBX 286A - MICROPHONE PRE-AMP PROCESSOR
THÔNG SỐ:
| Mic Preamp Connector | XLR Floating balanced, Pin 2 Hot |
| Mic Preamp Input Impedance | 1.75kΩ |
| Mic Preamp gain | +10dB to +60dB |
| Mic Preamp Phantom Power | +48 V |
| CMRR | >40dB, typically 55dB |
| Mic Preamp max input level | 0.2Vrms |
| Input Connectors | (line) Floating balanced, TIP Hot |
| Input Impedance | (line) 30kΩ unbalanced, 60kΩ balanced |
| Max Input | (line) >+21dBu, balanced or unbalanced |
| Input Gain Range | (line) -20dB to +30 dB |
| Insert Connector | 1/4" TRS: Normalled; tip is Send, ring is Return |
| Insert Impedance | >5kΩ (ring-return); 100Ω (tip-send) |
| Insert Max Level | >+21dBu |
| Insert Noise | <-84dBu, unweighted (20Hz-20kHz) |
| Insert Distortion | <0.01% THD, 20Hz-20kHz, +10dBu |
| Output Connectors | 1/4" Balanced/Unbalanced TRS Connectors |
| Output Impedance | 100Ω unbalanced, 200Ω balanced |
| Max Output | >+21dBu, >+20dBm (600Ω load) |
| Gain Adjustment Range | -30dB to +10dB |
| Noise | <-80dBu (typically -85dBu, unweighted (20Hz-20kHz) |
| Frequency Response | 20Hz to 20kHz, +0.5, -0.5dB |
| THD | <0.08%THD, 20Hz-20kHz, +10dBu, all Processing Controls OFF |
| Compressor Threshold Range | -40dBu to +20dBu |
| Compressor Threshold Characteristic | OverEasy® |
| Compressor Ratio | >4:1 For input levels beyond 20dB above threshold |
| Max Compression | 30dB |
| Compressor Attack Time | Program-dependent; adjustable |
| Compressor Release Time | Program-dependent; adjustable |
| Compressor Distortion | Typically <0.05%THD, 20Hz-20kHz, 15dB G/R, +10dBu Output, DENSITY @ 0 |
| De-esser Characteristic | Wideband Gain Reduction |
| De-esser Frequency Range | 800Hz to 10kHz High Pass |
| De-esser Release Time | 12dB/octave Program-Dependent; approximately 1mS/dB |
| Enhancer HF Detail Characteristic | Program-controlled shelving equalizer, approximately 15dB maximum HF boost |
| Enhancer LF Detail Characteristic | Bell-shaped boost @ 80Hz, bell-shaped cut @250Hz, ratio is approximately 2:1 |
| Expander/Gate Threshold Range | OFF to +15dBu |
| Expander/Gate Ratio | Adjustable 1.5:1 to 10:1 |
| Expander/Gate Max Depth | >50dB |
| Expander/Gate Attack Time | Program-Dependent, approximately 2mS |
| Expander/Gate Release Time | Program-Dependent, approxiamtely 10mS/dB |
| Expander/Gate Dynamic Range | Typically 105dB |
| Power Consumption | 15W |
| Operating Voltage | DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions | 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm) |
| Unit Weight | 4.68 lbs/2.13 Kgs |
| Shipping Weight | 6.54 lbs/2.97 Kgs |
